Measuring 20′-0″ x 16′-0″ (320 square foot), this screen porch has a vaulted ceiling and features ceiling beams to mimic the main cottage’s design. In front, a 20′-0″ x 7′-0″ (140 square foot) deck links up to an existing deck.

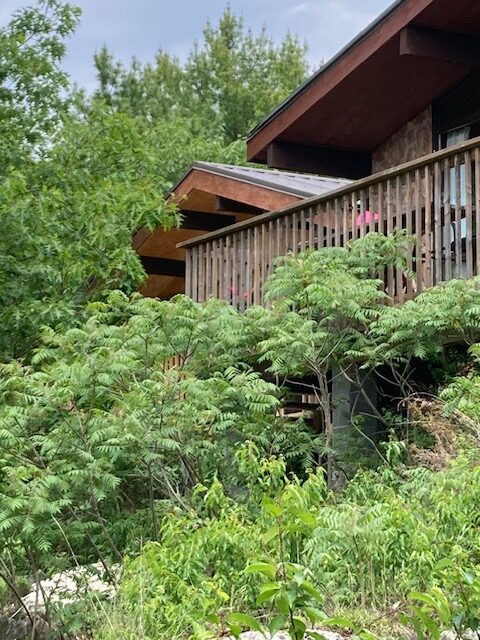

The porch has a framed knee wall below the screens, while a wood guard with wood balusters encompasses the deck. A set of stairs links the two decks, as there is a 5′-0″ gap between the new porch and the existing cottage. The roof is framed with 2×10 roof joists with exposed good-one-side plywood sheathing, since it will be exposed from below. The floor and deck framing utilizes 2×8 PT. joists with 2×6 PT. decking. The piers were constructed with concrete sonotubes pinned to the bedrock.
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-From-Extg-Deck-2.jpg?resize=466%2C625&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-From-Extg-Deck-rotated.jpg?resize=480%2C640&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-From-Extg-Stairs-rotated.jpg?resize=480%2C640&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-Doorway.jpg?resize=453%2C625&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-Interior.jpg?resize=447%2C618&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-Towards-Extg-Deck.jpg?resize=439%2C609&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-From-Ground.jpg?resize=621%2C457&ssl=1)
![](https://i0.wp.com/broeredesign.com/wp-content/uploads/2024/01/Archipelago-Screen-Porch-Front-Right-rotated.jpg?resize=480%2C640&ssl=1)
